Racks & Payouts

Marken has a wide selection of racks & payouts  for wire, hose, and cable assembly lines.

  • Lasting quality construction
  • Smooth release and feed
  • Time saving process control

763 REEL PAYOUT MACHINE

763_reel_payout

Specifications
Type Manual Reel Payout
Application Wire, Steel Cable & Hose
Max. Weight 2000 lbs
Width No Limit
Dimensions 25″ x 7″ x 2.5″

request a quotes

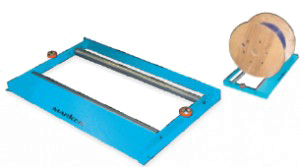

764 REEL PAYOUT

764 REEL PAYOUT

Specifications
Type Manual
Application Wire, Steel Cable & Hose
Max. Weight 1000 lbs
Width up to 36″
Dimensions 25″ x 7″ x 2.5″

request a quotes

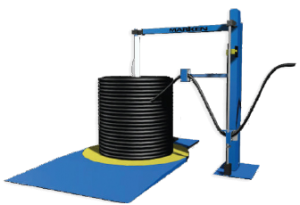

PP48 PAYOUT

PP48 PAYOUT

Specifications
Type Motorized
Application Wire, Steel Cable & Hose
Max. Weight 1000 lbs
Width Up to 48

request a quotes

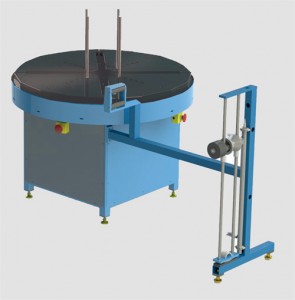

MPL48 MOTORIZED PAYOUT

MPL48 Motorized Payout

Specifications
Type Motorized
Application Hose
Max. Weight 300 lbs.
Width Up to 48
Dimensions 96″ x 50″ x 60″, 250 lbs., 110/230v, 1ph, 50/60 hz

request a quotes

PL48 DISPENSING PAYOUT

PL48 DISPENSING PAYOUT

Specifications
Type Manual
Application Wire, Steel Cable & Hose
Max. Weight 350 lbs
Width Up to 48″
Dimensions 50″ x 50″ x 55″, 125 lbs.

request a quotes

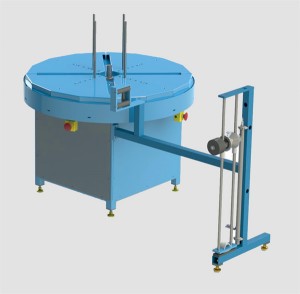

MPL48 1000 MOTORIZED PAYOUT

MPL48 1000 PAYOUT

Specifications
Type Motorized
Application Hose
Max. Weight 1000 lbs.
Width Up to 48
Dimensions 96″ x 50″ x 60″, 250 lbs., 110/230v, 1ph, 50/60 hz

request a quotes

PRODUCTION RACK

PRODUCTION RACKS & PAYOUTS

Specifications
Type Rack
Application Wire, Steel Cable & Hose
Max. Weight 2260 lbs
Width Up to 36
Dimensions 120″ x 36-42″ x 76″ 350 lbs

request a quotes

SR SERIES RACKS

SR SERIES RACKS

Specifications
Type Rack
Application Wire, Steel Cable & Hose
Max. Weight 150 lbs each arm
Width Up to 48
Dimensions 80″ x 40″ x 76″ 200 lbs Size varies depending on configuration*

request a quotes

MODEL 800 DEREELER

MODEL 800 DEREELER

Specifications
Type Automated
Application Wire, Steel Cable & Hose
Max. Weight 7000 lbs
Width Up to 8 ft
Dimensions 120″x60″x72″ 2000 lbs
Power 208/480v 3ph 50/60hz

request a quotes
