Manual & Semi-Automatic Cutting Machines
Marken uses state-of-the-art cutting methods for hydraulic hose, PTFE hose, rubber hose,non-wire tubing, steel cable, and wire rope. Our machines offer clean square cuts that are accurate and repeatable.
|
|
589 MANUAL GUILLOTINE CUTTER
- Manual guillotine cutter
- Foot pedal activation
- Manual feed
- V-Trough for measurement
| Model # | Type | Dimensions | Power | Air | Non-wire Hose | Application |
|---|---|---|---|---|---|---|
| 589S | Manual Cutter | 12” x 8” x 12” 40 lbs | N/A | 100 psi | 3/4″ | Hose, Tubing |
| 589L | Manual Cutter | 15” x 12” x 20” 60 lbs | N/A | 100 psi | 1-3/4″ | Hose, Tubing |
| 589XL | Manual Cutter |
18” x 18” x 30” 80 lbs | N/A | 100 psi | 2.9″ | Hose, Tubing |
589 CABLE CUTTER
- Manual guillotine cutter
- Foot pedal activation
- Manual feed
- V-Trough for measurement
| Item # | Type | Dimensions | Power | Air | Steel Cable | Application |
|---|---|---|---|---|---|---|
| 589H | Manual Cutter | 48″ x 32″ x 48″ 60 lbs | 110/230v 1ph 50/60hz | 100 psi | 3/5″, 2″ copper | Steel, Copper Cable |
| 589I | Manual Cutter | 48″ x 32″ x 48″ 60 lbs | 110/230v 1ph 50/60hz | 100 psi | 3/16″ | Steel Cable |

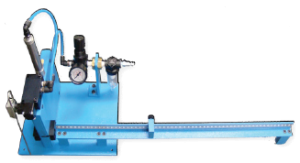

590 MANUAL WIRE CUTTER
| Item # | Dimensions | Model | Steel Cable | Non-wire Hose | PTFE Hose | Air | Application |
|---|---|---|---|---|---|---|---|
| 590 | 10″ x 10″ x 12″ 30 lbs | 590 Manual Cutter | 1/4″ | N/A | N/A | 100psi | Wire |

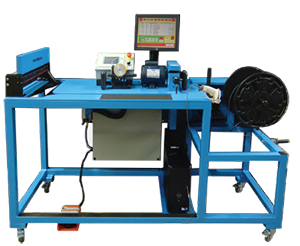

WIRE CUTTER & WINDER
| Item # | Dimensions | Model | Weight | Width | Type | Application |
|---|---|---|---|---|---|---|
| Wire Cutter/Winder | 80″ x 40″ x 60″ 300 lbs | Wire Cutter & Winder |
1000 lbs | up to 48″ | Automatic | Wire |

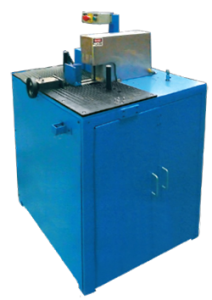

M-16 MANUAL HOSE CUTTER
| Model # | Type |
Dimensions | Power | Air | Hyd Hose | Application |
|---|---|---|---|---|---|---|
| M16 | Manual |
34″ x 34″ x 56″ 600 lbs | 10hp/15hp 230/480v 3ph 50/60hz | 100 psi | 2″ Hyd, 4″ Ind. | Hyd Hose |

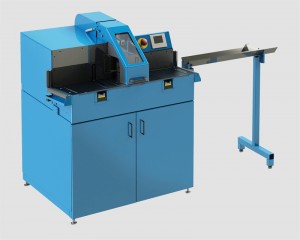

M20 SEMI-AUTOMATIC SAW
| Model # | Type | Dimensions | Power | Air | Hyd Hose | Application |
|---|---|---|---|---|---|---|
| M20 | Semi-Automatic Saw | 38″ x 34″ x 56″ 400 lbs |
10hp/15hp 230/480v 3ph 50/60hz | 100 psi | 3″ Hyd, 6″ Ind. | Hyd Hose |
