Feeding and Coiling Machines
Variety of manual and automatic feeding machines and devices to increase performance and production.
- Industrial grade capacities
- Lasting quality and performance
- Multiple spool and reel configurations
- Custom systems available
PC 1000 AIR ACTIVATED LIFT AND FEED
| Specifications | |
| Type | Automated |
| Max. Weight | 1000 lbs |
| Width | up to 60″ |
| Air | 100psi max. |
| Power | 110/230v 1ph 50/60hz |
| Dimensions | 48″ x28″ x42″ 150 lbs |
P200 MOTORIZED FEED
| Specifications | |
| Type | Automated |
| Max. Weight | 50 lbs Spool & 250 lbs Reel |
| Feed Rate | up to 500 fpm |
| Speed | 1/4 hp Wire & 1/2 hp Reel |
| Power | 110/230v 1ph 50/60hz |
| Dimensions | 48″ x28″ x42″ 150 lbs |
PL48x4 ROTATING COIL RACK
| Specifications | |
| Type | Rack |
| Application | Rubber Hose, Steel Cable & Wire |
| Max. Weight | 350 lbs each arm |
| Width | up to 48″ |
| Dimensions | 120″ x 120″ x 60″ 300-400 lbs |
TRAPEZE
| Specifications | |
| Type | Automated |
| Application | Hose |
| Max. Weight | no limit |
| Dimensions | 52″ x 54″ x 56-96″ 80 lbs |
Coiling Machines
Marken has many standard and customized solutions for re-coiling needs including measuring and cutting. This is a fast, clean and organized way to operate.
- Complete systems integration
- Variable speed configuration
- Adjustable load capacities

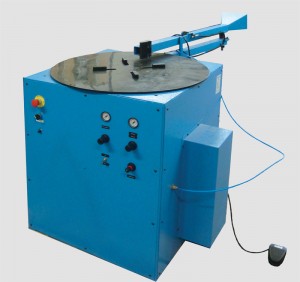

AUTO-COIL 30 (AC30)
| Specifications | |
| Type | Auto-Coil |
| Item # | AC30 |
| Application | Hose |
| Max Weight | 100 lbs |
| Max Length | 100′ |
| Dimensions | 28″ x 80″ x 46″, 200 lbs, Foot pedal pin release |

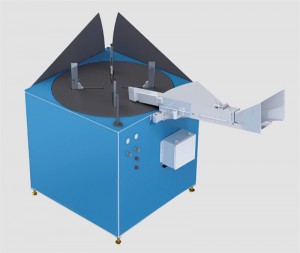

AUTO-COIL 50 (AC50)
| Specifications | |
| Type | Auto-Coil |
| Item # | AC50 |
| Application | Hose |
| Max Weight | 300 lbs |
| Max Length | 100′ |
| Dimensions | 58″ x 36″ x 42″, 200 lbs, Foot pedal pin release |

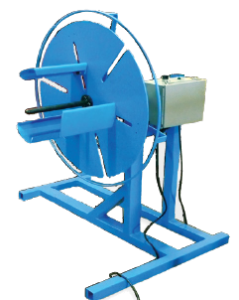

670C COILER
| Specifications | |
| Type | Automated |
| Item # | 670C |
| Application | Wire, Steel Cable & Hose |
| Max Weight | 150 lbs |
| Width | 12″-18″ adjustable ID |
| Dimensions | 48″ x 34″ x 60″ 225 lbs |
