Automatic Cutting Machines

Further maximize your overall efficiency by opting for one of Marken’s PC Control solutions. Developed to streamline
and coordinate your output, we offer several integrated setups on various levels of automation.

  • Hydraulic Hose
  • PTFE
  • Thermoplastic, PVC, Silicon
  • Rubber Hose
  • High Pressure Tubing
  • Wire, Steel Cable
  • Suction Hose
  • Hose Guard
  • Composite Hose

450 AUTOMATIC CUTTING MACHINES

450 A AIR GUILLOTINE

  • Rate of feed up to 180 FPM
  • Up to 2000 cuts per hour
  • Accuracy .1 to .3 percent of length
  • CPK 1.67 to 2.1 or more

Available Accessories

  • Steel Table
  • Reel Roller
  • Payout, Coiler, or Winder
  • Dispensing Rack, Arm or Platter
  • Collection Bin
  • Splice Detection

product specifications

request a quotes

Model # Type Dimensions Weight Power Air Steel Cable  Non-wire Hose
PTFE Hose Application
450 A AIR GUILLOTINE Automatic
18″x 24″ x 13″ 125 lbs
110/240 Volts, Single Phase 100psi N/A 3/4″
N/A Hose, Tubing
450 I INTENSIFIER Automatic
18″x 24″ x 13″ 125 lbs
110/240 Volts, Single Phase 100psi 3/16″  N/A
N/A Wire, Cable

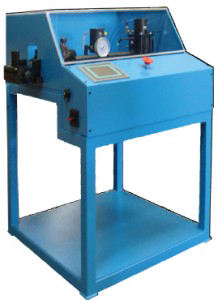

475 AUTOMATIC CUTTING MACHINES

475 A 475 H 475 WC 475 S AUTOMATIC CUTTING MACHINES

  • Rate of feed up to 180 FPM
  • Up to 2000 cuts per hour
  • Accuracy .1 to .3 percent of length
  • CPK 1.67 to 2.1 or more

Available Accessories

  • Steel Table
  • Reel Roller
  • Payout, Coiler, or Winder
  • Dispensing Rack, Arm or Platter
  • Collection Bin
  • Splice Detection
  • PC Control/Kit Cutting
  • Depth Marking
  • Ink Jet Lay Line, Part Number, Logo or Bar Code Marking

product specifications

request a quotes

Model # Type  Dimensions Power
 Air
Steel Cable Non-wire Hose PTFE Hose Hose Guard Application
475 A AIR GUILLOTINE Automatic 36″ x 34″ x 36″ 300 lbs 120/230 Volts Single Phase 100psi
N/A 1 1/4″ N/A N/A Hose, Tubing
475 H HYDRAULIC Automatic 36″ x 34″ x 36″ 300 lbs 120/230 Volts Single Phase
100psi 1/4″ N/A 1″ pinched ends N/A Wire, Cable, PTFE
475 WC WELD CUT Automatic 36″ x 34″ x 36″ 300 lbs 120/208/230/400/480/600 Volts Single or Three Phase
100psi 1/4″ welded ends N/A N/A N/A Steel Cable
475 S SAW Automatic 36″ x 34″ x 36″ 300 lbs 208/230/400/480/600 Volts Three Phase 100psi N/A N/A N/A 4″ flat Hose Guard/Sleeve

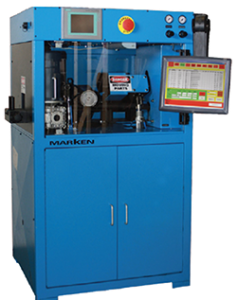

500/550/600/650 AUTOMATIC CUTTING MACHINES

500/550/600/650 AUTOMATIC CUTTING MACHINES

  • Rate of feed up to 160 FPM
  • Up to 750-1000 cuts per hour
  • Accuracy .1 to .5 percent of length
  • CPK 1.67 to 2.1 or more
  • Hose capacity up to 50
  • Combine both guillotine and saw cutting

Available Accessories

  • Payout, Reel Roller, Dispensing Rack, Arm or Platter
  • Collection Bin, Coiler, Winder
  • Splice Detection
  • Database interface
  • PC Control / Kit Cutting Technology
  • Depth Marking, Ink Jet Lay Line, Part Number, Logo and or Bar Code Marking
  • Automatic or Manual Adhesive Labeling

product specifications

request a quotes

Model # Type Dimensions
Power Air Hydraulic Hose Steel Cable Non-wire Hose Battery Cable PTFE Hose Application
500 A AIR GUILLOTINE Automatic 34″ x 34″ x 56″ 1000 lbs
110/230 Volts, Single Phase 100 psi
1-3/4″ – non-wire N/A up to 3″ OD 3/4″ w/spec. blade N/A Hose, Hyd Hose, Tubing
500 S SAW Automatic 34″ x 34″ x 56″ 1000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 3/4″ two wire 1″ one wire N/A 1-1/4″ N/A 1″ flared end Hose, Hyd Hose, PTFE
500 SI SAW/INDUCTION Automatic 34″ x 34″ x 56″ 1000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 3/4″ two wire 1″ one wire N/A 1-1/4″ N/A 1″ non-flared end Hose, Hyd Hose, PTFE
500 H HYDRAULIC Automatic 34″ x 34″ x 56″ 1000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi N/A 5/16″ N/A 1-1/2″ 1″ Pinched Wire, Cable, PTFE
500 WC WELD CUT Automatic 34″ x 34″ x 56″ 1000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi N/A 3/8″ N/A N/A N/A  Cable, PTFE
550 S SAW Automatic 34″ x 34″ x 56″ 1000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 1 1/4″ six wire 1 1/2″ four wire N/A 2″ N/A N/A Hose, Hyd Hose, PTFE
500 XL Automatic 30 to 60″ x 60″ x 36″ 2000 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 3/4″ one wire N/A up to 1″ N/A N/A Hose, Hyd Hose, Tubing
600 Automatic 50″” x 36″ x 62″ 1500 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 3/4″ two wire, 1″ one wire N/A up to 1″ N/A N/A Hose, Hyd Hose, Tubing
650 Automatic 50″” x 36″ x 62″ 1500 lbs
208/230/400/480/600 Volts, Three Phase 100 psi 1″ two wire – 2″ six wire N/A N/A N/A N/A Hyd Hose
